Looking To Impress

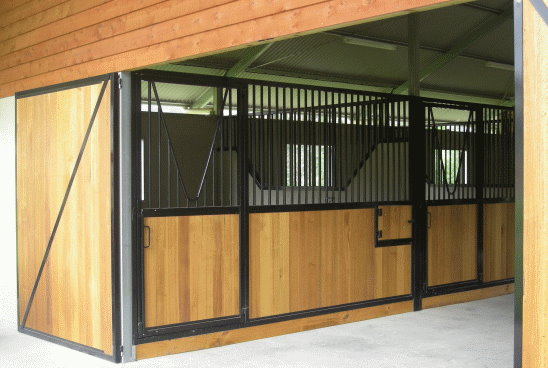

A view as seen on entry to a stable complex built by Superior Sheds & Stables at Guanaba, Qld.

Bamboo Panels Bamboo Panels Looking To Impress Three Stable Complex Front Panel View

Custom Stable Panels

Superior Sheds & Stables can measure, design, manufacture and install panels to suit the needs of your stables or we can build to your specification and leave the rest to you.

We typically make panels with the inset chosen from one of three materials. For the budget conscious form ply is very cost effective and for outdoor areas, conveyor belt rubber is a good option.

But when looks are everything it's hard to go past Tasmanian Oak. This timber gives less shrinkage than most other timbers while resisting splintering and retaining flexibility and light weight. Tassie Oak has a wonderful natural colour but can be easily stained to suit any colour scheme.

General Specifications
SizeAny size - made to measure
FrameHot Dipped Galvanized Steel - 50mmx50mmx2mm
Pipe20 od pipe - 20mm outside measurement
Welded at 75mm centres
DoorsBall bearing hinges screwed to main frame
HandlesHinged DoorSteel "D" handle with concealed sliding lock
Sliding DoorSteel "D" handle with concealed sliding lock
InsetTimberKiln dried Tas Oak - 130mm wide x 31mm thick
PlyForm Ply 17mm black or natural timber finish
RubberConveyer Rubber 6mm thick

Extras

Talk to us about any feature you may need including :

  • Sliding doors.
  • Spinning feed bins that lift off (plastic or galvanized).
  • Other/extra feeder positions
  • Automatic waterers.
  • Full height insets in timber, rubber or ply.
  • Mesh used instead of pipe (same cost).
  • Sawdust stoppers under doors.
  • Hinged panels to allow bobcat entry.

Maintenance

Stable panels are at risk of rust and/or rot due to the presence of horse urine or possible flooding such as might be caused by a leaking waterer. During the installation of all custom made panels Superior Sheds & Stables apply a protective coating to the underneath side before standing as well as the lower part of the panel after standing in place.

For panels not installed by Superior Sheds & Stables, we supply a tube of sealant and a tin of bitumen paint per stable for this purpose.

To ensure the longest possible life for the panel it is necessary to regularly check this barrier and if necessary, clean and reapply. Just ask us about the latest panel protection when recoating.

Door hinges should be greased annually or as required.

Panel Styles

All panels are available with either ply, rubber, bamboo or Tasmanian Oak insets. Frames can also be powdercoated.

Panel Style 1Apanel_1A_front_door_middlepanel_1A_front_door_sidepanel_1A_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesFull height panel.
Panel Style 2Apanel_2A_front_door_middlepanel_2A_front_door_sidepanel_2A_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesFull height panel with scalloped door
Panel Style 1Bpanel_1B_front_door_middlepanel_1B_front_door_sidepanel_1B_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesThree quarter height panel with 45° sides.
Minimum bar height - 300mm.
75mmx75mmx3mm post either side of door.
Panel Style 2Bpanel_2B_front_door_middlepanel_2B_front_door_sidepanel_2B_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesThree quarter height panel with curved sides.
Minimum bar height - 300mm.
75mmx75mmx3mm post either side of door.
Panel Style 3Bpanel_3B_front_door_middlepanel_3B_front_door_sidepanel_3B_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesThree quarter height panel with stepped angled sides.
Minimum bar height - 300mm.
75mmx75mmx3mm post either side of door.
Panel Style 4Bpanel_4B_front_door_middlepanel_4B_front_door_sidepanel_4B_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesThree quarter height panel with rounded sides.
Minimum bar height - 300mm.
75mmx75mmx3mm post either side of door.
Panel Style 1Cpanel_1C_front_door_middlepanel_1C_front_door_sidepanel_1C_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesFull height scalloped front.
Bottom of scallop - 1500mm to 1600mm
Top of scallop - 2100mm
** Steel post - 75mmx75mmx3mm - from slab required either side of door.
Panel Style 2Dpanel_2D_front_door_middlepanel_2D_front_door_sidepanel_2D_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesFull height curved panel.
Bottom of curve - 1500mm to 1600mm
Top of curve - 2100mm.
** Steel post - 75mmx75mmx3mm - from slab required either side of door.
Panel Style 3Dpanel_3D_front_door_middlepanel_3D_front_door_sidepanel_3D_divider
Stable Front - centre doorStable Front - side doorDivider
FeaturesFull height curved panel.
Bottom of curve - 1500mm to 1600mm
Top of curve - 2100mm.
** Steel post - 75mmx75mmx3mm - from slab required either side of door.
